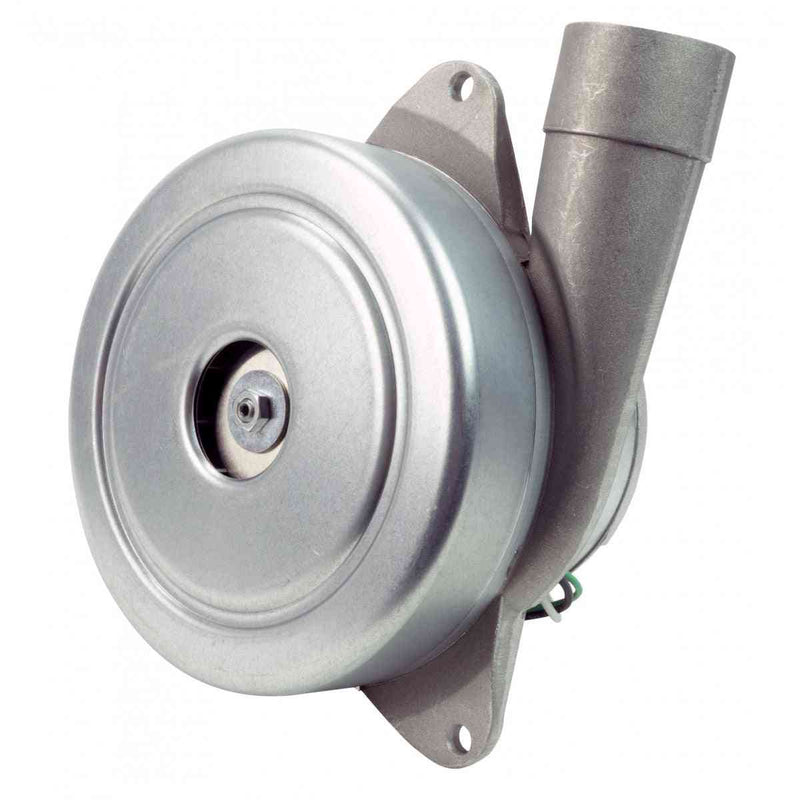

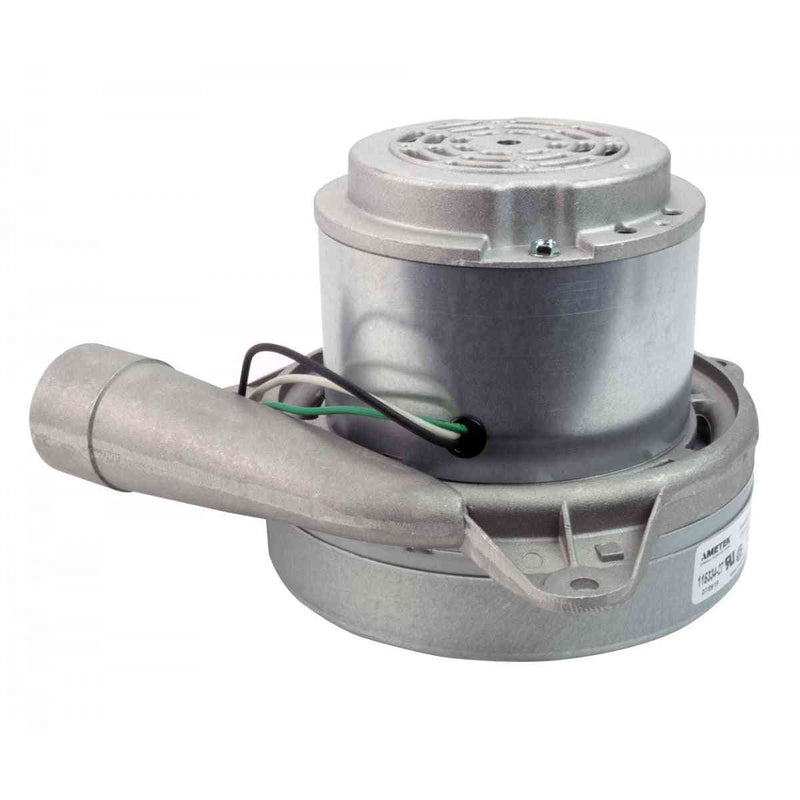

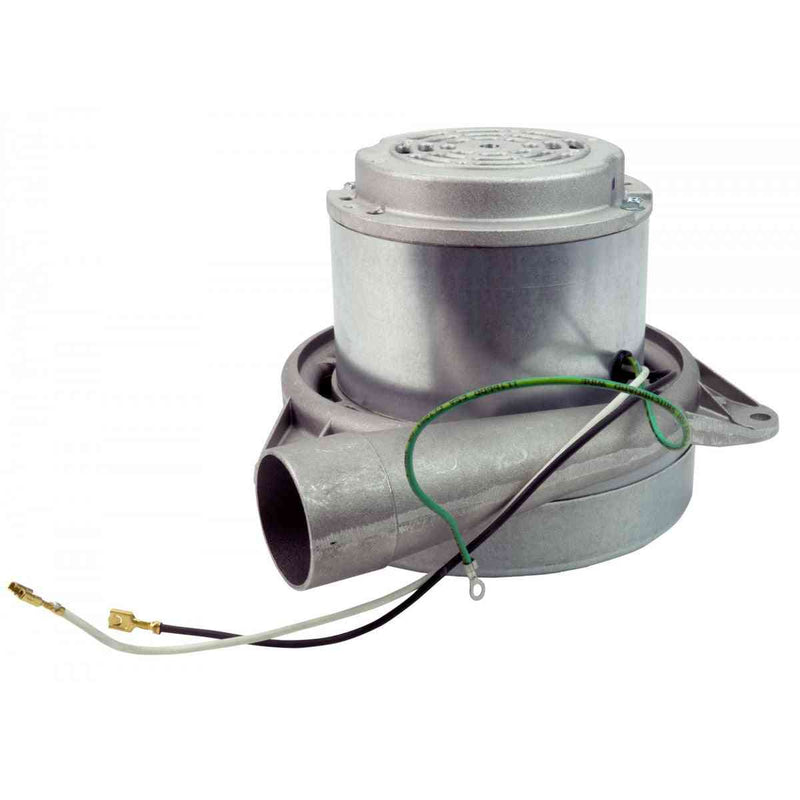

The Ametek 115334 Tangential Vacuum Motor, featuring 2 fans and a 7.2 inches diameter, is designed for powerful air movement and versatile applications. With air-sealed bearings, it ensures durability in various settings, including commercial vacuums, sprayer/foggers, and central vacuum systems. Its flexible mounting options, temperature tolerance up to 40°C, and UL/CSA certifications make it a reliable choice for diverse cleaning needs.
Key Features:
Powerful Performance: Equipped with 2 fans and 7.2 inches diameter for effective air movement, providing 384 Air Watts.
Versatile Application: Ideal for commercial canister or utility vacuums, sprayer/foggers, material handling, transfer systems, car wash, and central vacuum systems.
Durable Design: Features air-sealed bearings for added protection against dirt and moisture, ensuring long-lasting performance.
Temperature Tolerance: Suitable for ambient temperatures up to 40°C, making it versatile in various environments.

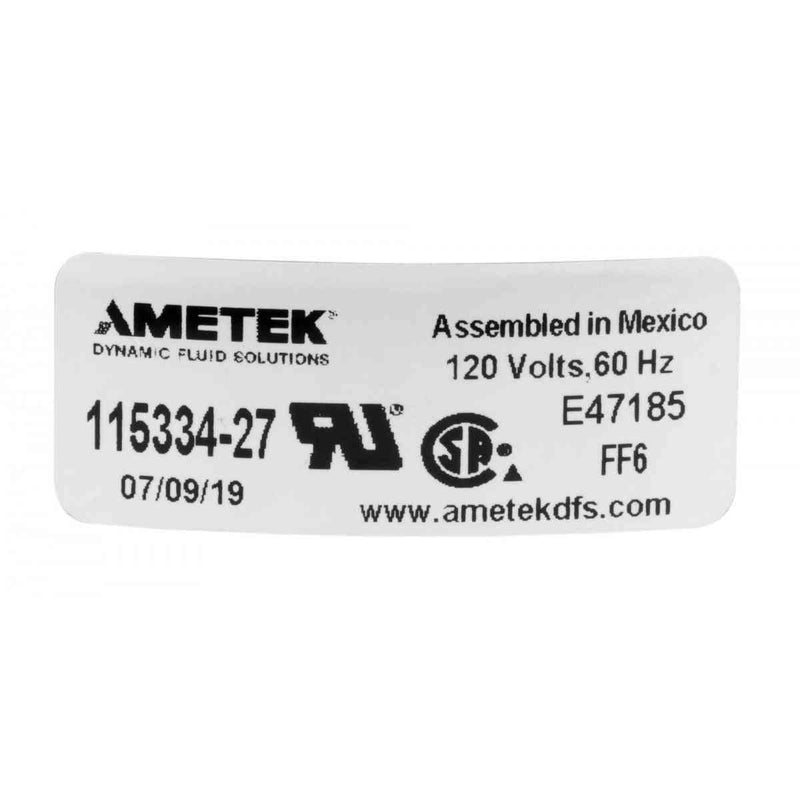

Certified Quality: UL recognized and CSA certified, meeting industry standards for safety and quality.
Flexible Mounting: All-position mounting allows for convenient and adaptable installation in diverse settings.
Average Brush Life: 4.3 inches and 5.7 inches Dia., 500 Hr.; 7.2 inches Dia., 700 Hr.; 7.5 inches Dia., 1000 Hr. for extended operational life.
Specifications:
| Feature | Description |
|---|---|
| Motor Type | Tangential Vacuum Motor |
| Number of Fans | 2 |
| Diameter | 7.2 inches |
| Voltage | 120 V |
| Amperage | 13 A |
| Power Consumption | 1444 W |
| Air Watts | 384 |
| Water Lift | 110 inches |
| Airflow | 102.7 CFM |
| Enclosure | Open |
| Mounting | All-Position |
| Maximum Ambient | 40°C |
| Duty | Intermittent |
| Bearings | Permanently Lubricated |
| Average Brush Life | 5.7 inches Dia. 500 Hr. | 7.2 inches Dia. 700 Hr. | 7.5 inches Dia.1000 Hr. |
