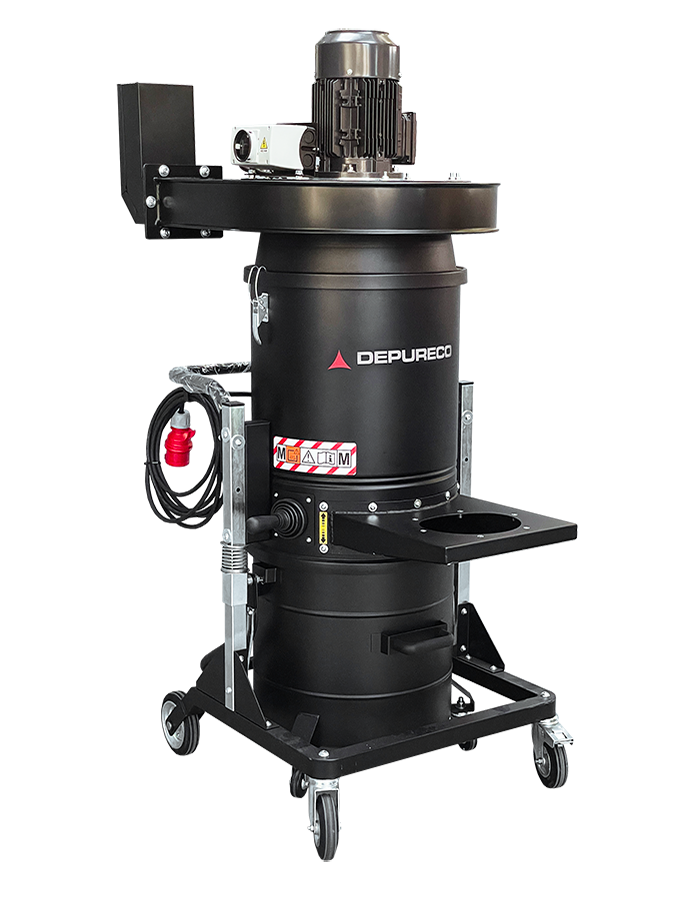

The DF 075 is a portable industrial vacuum with a three-phase fan for vacuuming suspended dust or it can be connected to a aluminum and/or PVC cutting machine. The DF 075 industrial vacuum from the Depureco dust collector product line is fitted with an excellent filtering surface with an M Class filtration efficiency (1 micron).
For this vacuum cleaner, a very effective manual filter cleaning system is fitted as standard. Thanks to a lever outside the filter chamber, the operator can shake the filter and make the dust drop directly into the bin. An automatic piston filter shaking system or jet pulse filter cleaning system can be installed on demand.
Power: 0.75kW
Surface: 24.000cm2
Capacity: 65/100 L
ENGINE / MOTOR:
| Suction type | Fan |
| Voltage | 400 V |
| IP | 55 |
| Maximum air flow | 400 | 800 | 1000 m3/h |
| Noise level – (EN ISO 3744) | 65 dB(A) |
| Frequency | 50/60 Hz |
| Power | 1.0 HP |
| Insulation class | F |
| Maximum vacuum | 180 | 160 | 130 mm/H2O |
| Available static inlet pressure | 180 | 150 | 123 |
PRIMARY FILTER:
| Type | Star Filter |
| Class EN 60335-2-69 | M Class |
| Media | Polyester |
| Filter cleaning | Manual Shaker |
MACHINE:
| Inlet | 70 | 100 | 120 Ø mm |
| Dimensions | 660 x 800 mm |
| Height | 1630 mm |
| Weight | 110 Kg |
