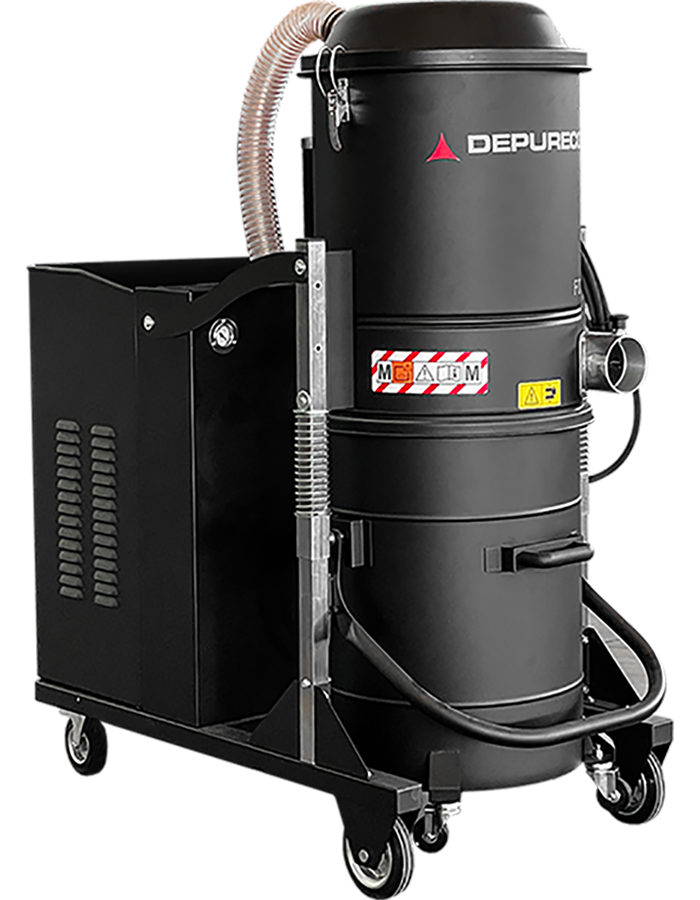

The FOX 7.5 S is a powerful and reliable industrial vacuum. Fitted with a 3-kW side channel turbine, ideal for working continuously without the need for maintenance. The filter chamber contains a large surface (24,000 cm2) polyester filter, certified as M Class (1-micron filtration efficiency), ideal for working with even the finest dust. The filter is protected by a sturdy metal cyclone welded inside the filter chamber. On this industrial vacuum from Depureco’s three-phase range, a different filter can be installed on this vacuum depending on the professional application.
Teflon water-repellent filters, Nomex 250°C resistant filters, and filters with PTFE treatment for more binding and difficult dust are also available. The unit can be fitted with an H14 absolute filter on demand. The FOX industrial vacuum is equipped with a large 100 Lt detachable container on wheels that allows the operator to collect and empty the vacuumed material easily. Disposable collection bags can also be used. A floating system can be provided in the container to vacuum liquids in complete safety.
Power: 5.5kW
Surface: 24.000cm2
Capacity: 100 L
ENGINE / MOTOR:
| Suction type | Side Channel Blower |
| Voltage | 400 V |
| IP | 55 |
| Maximum vacuum | 510 mBar |
| Vacuum in continuous run | 440 mBar |
| Maximum air flow | 320 m3/h |
| Safety valve | Included |
| Noise level – (EN ISO 3744) | 76 dB(A) |
| Frequency | 50/60 Hz |
| Power | 7.5 HP |
| Insulation class | F |
PRIMARY FILTER:
| Type | Star Filter |
| Class EN 60335-2-69 | M Class |
| Media | Polyester |
| Filter cleaning | Manual Shaker |
MACHINE:
| Inlet | 80 Ø mm |
| Dimensions | 660 x 1200 mm |
| Height | 1510 mm |
| Weight | 172 Kg |
| Conic cyclone | Included |
