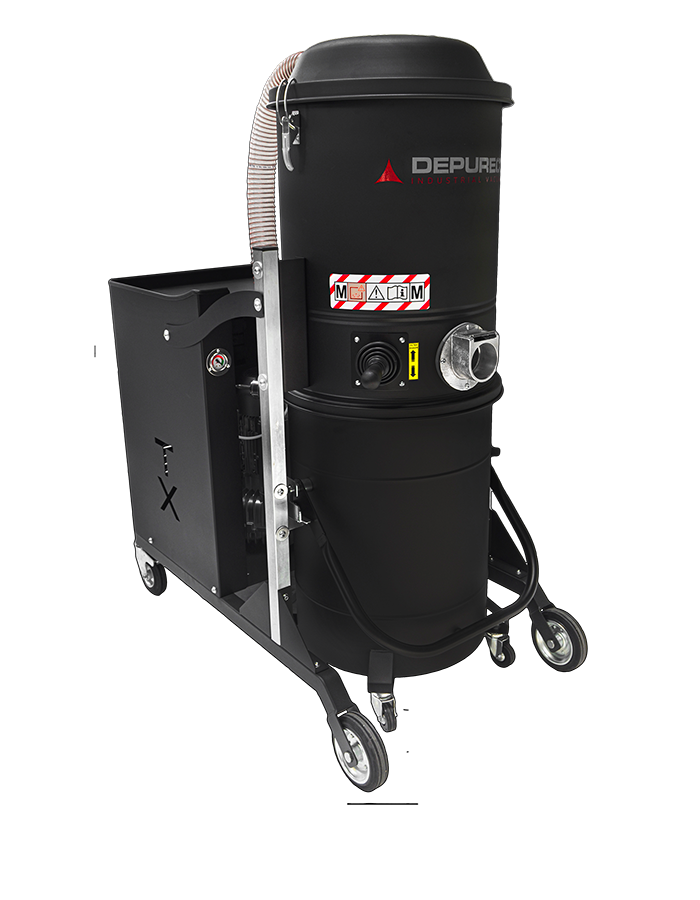

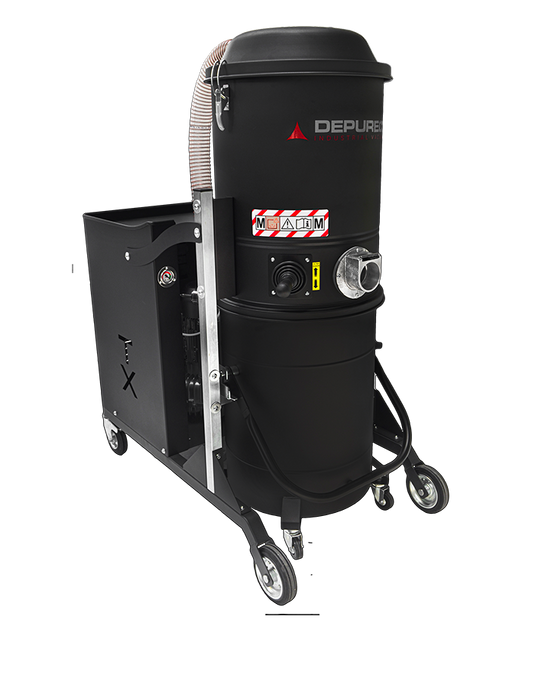

The TX 550 S industrial vacuum stands out for its power, maneuverability, and compactness. Fitted with a 5.5 kW side channel turbine, ideal for working continuously without the need for maintenance. The filter chamber contains a large surface (24,000 cm2) polyester filter, certified as M Class (1-micron filtration efficiency), ideal for working with even the finest dust. In this industrial vacuum of the Depureco three-phase range, a different filter can be installed depending on the professional application.
Teflon water-repellent filters, Nomex 250°C resistant filters, and filters with PTFE treatment for more binding and difficult dust are also available. The unit can be fitted with an H14 absolute filter on demand. The TX industrial vacuum is equipped with a large 65Lt or 100 Lt detachable container on wheels allowing the operator to empty the vacuumed material easily. Disposable collection bags can also be used. A floating system can be provided in the container to vacuum liquids in complete safety.
Power: 5.5kW
Surface: 38.000cm2
Capacity: 100 L
ENGINE / MOTOR:
| Suction type | Side Channel Blower |
| Voltage | 400 V |
| IP | 55 |
| Maximum vacuum | 510 mBar |
| Vacuum in continuous run | 440 mBar |
| Maximum air flow | 330 m3/h |
| Safety valve | Included |
| Noise level – (EN ISO 3744) | 76 dB(A) |
| Frequency | 50/60 Hz |
| Power | 7.5 HP |
| Insulation class | F |
PRIMARY FILTER:
| Type | Star Filter |
| Class EN 60335-2-69 | M Class |
| Media | Polyester |
| Filter cleaning | Manual Shaker |
MACHINE:
| Inlet | 70 Ø mm |
| Dimensions | 650 x 1100 mm |
| Height | 1400 mm |
| Weight | 155 Kg |
